Ultima II Valve Settings

Support > Ultima II Support > Ultima II Valve Settings

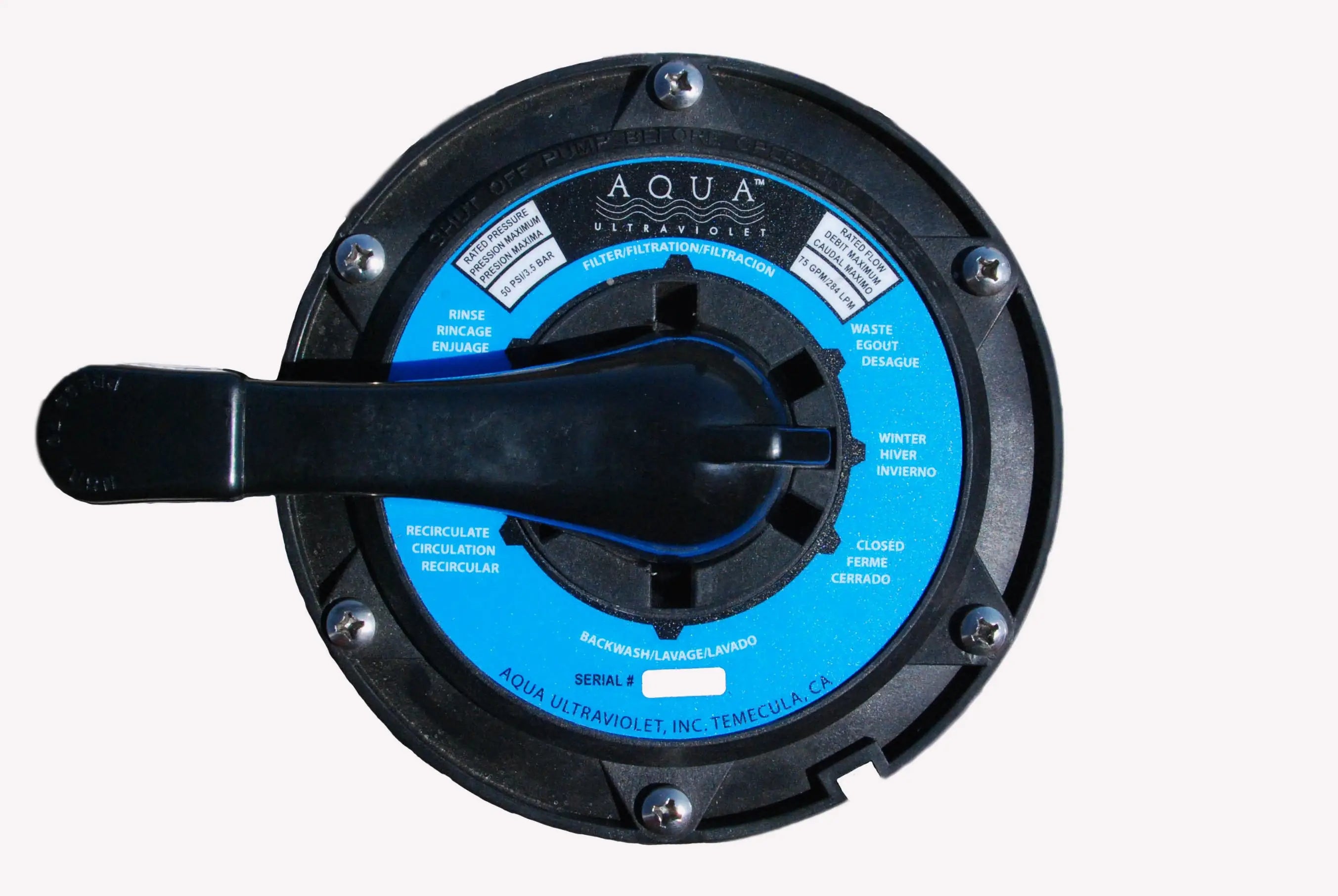

The Ultima II valve. Click on the image to make it larger.





Filter

Used for normal operation.  Water flows through the filter media and waste is captured.

Waste

Drains the pond down without either backwashing or flowing water through the media.  Useful for winterizing the filter.

Winter

Leaves all the ports open.  This setting is used whenever the filter is shut down for extended periods of time.

Closed

Closes all the ports.  When working on the filter system, set the filter to closed to prevent water from siphoning out of the pond and to keep it from pouring out of the area you are working on

Backwash

Agitates the filter media to remove the trapped waste.

Recirculate

Bypasses the filter but allows water to recirculate.  This setting is used when a Koi disease treatment that is harmful to the filter bacteria is added to the pond,.

Rinse

Resets the filter media and removes any residual waste that is left over after backwashing.
