MDM, Inc

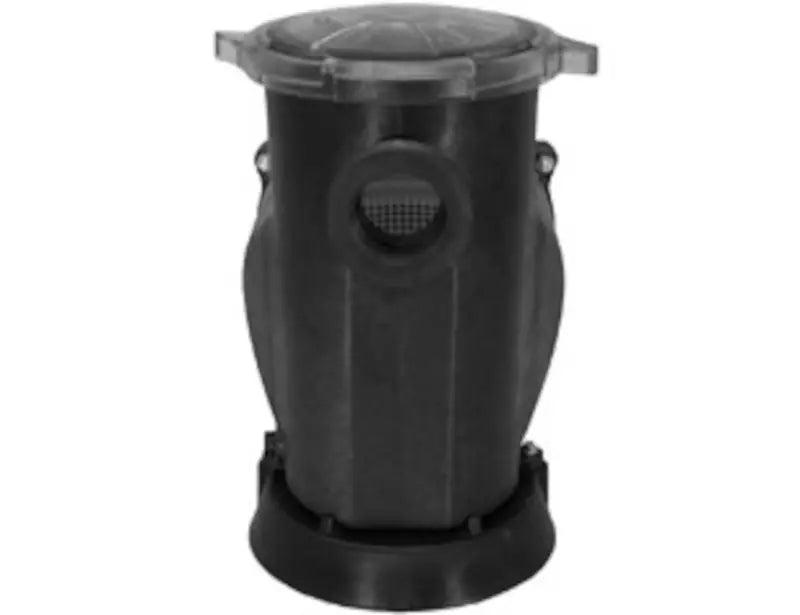

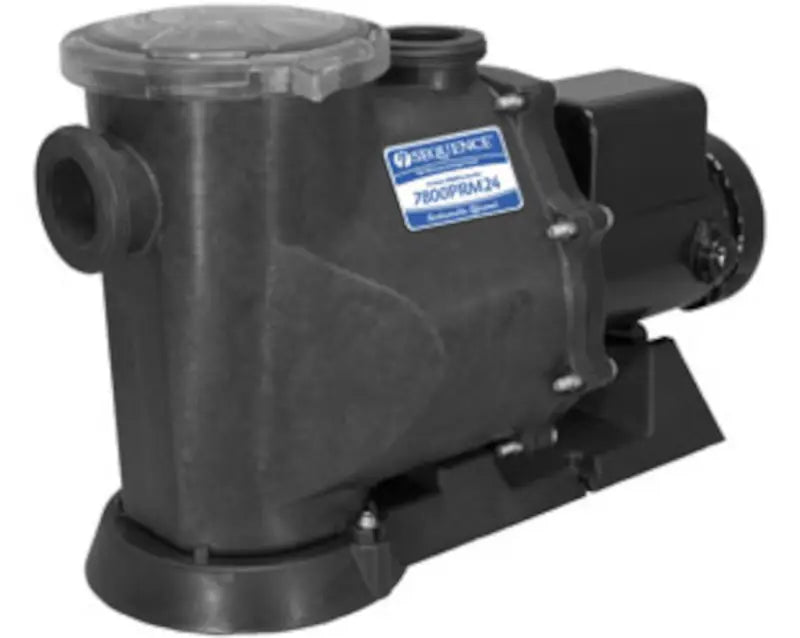

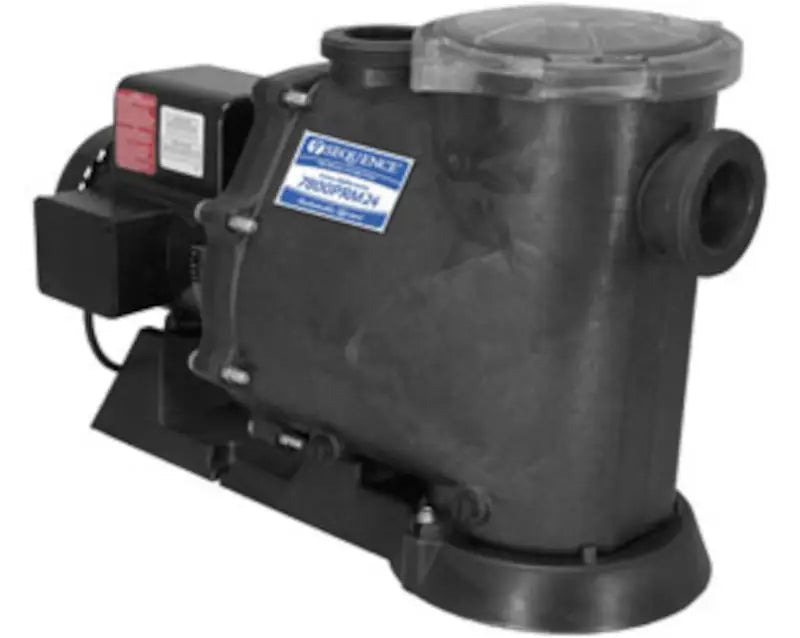

Sequence Primer Alpha 7800PRM24

Sequence Primer Alpha 7800PRM24

Regular price $1,452.00
Regular price Sale price $1,452.00
Sale Sold out
Shipping calculated at checkout.
  • Out-of-pond construction - Not Submersible
  • Ports are 2" FNPT suction and 2" FNPT discharge.
  • Quiet operation
  • Units are pre-wired with an 8' cord and molded 115V plug.
  • Housing is molded of high strength, glass filled polypropylene.
  • Dry run resistant mechanical seals.
  • Stainless steel hardware is standard.
  • The motors are TEFC, for excellent protection.
  • Rebuildable, industrial grade motors.
  • 3 year limited warranty!



Model: 7800PRM24
Size: 1/2 H.P.
Head: 23' MAX
Flow: 1500-6600 GPH
Draw: 539 WATTS
Weight: 52 lbs

For more information, read:



Sequence Self-Primer Information

Model 6800PRM19 7800PRM24
INLET 2" 2"
DISCHARGE 2" 2"
MAX FLOW
(gph)
6800 7800
MAX HEAD
(feet)
19' 24'
MAX POWER
(watts)
369 504
MAX CURRENT
(amps)
3.93 5.02
@
(volts)
115 115
MOTOR HP 1/2, 1/3 1/2, 1/3
MOTOR ENCLOSURE TEFC TEFC
